Product Overview
V6 Submersible PumpModel: V6-10 to V6-30
The RK Jain V6 Water Filled Submersible Pump Set (150mm OD) is designed for high performance and built for long life. Its water-filled design gives efficient cooling, while a high-grade stainless steel body and high-torque motor deliver dependable high-head performance for deep borewells.
Key Features
- Water Filled Design — efficient cooling for better performance & longer life
- High Efficiency — maximum output with minimum power consumption
- Rust & Corrosion Resistant — high grade stainless steel & special coating
- Powerful Motor — high torque motor for consistent performance
- Easy Installation — compact, robust and easy to install
Applications
AgricultureResidentialIndustrialWater Supply
Technical Specifications
| Model | HP / Stages / Discharge / Bore / Max Head / Max Discharge |
|---|---|
| V6-10 | 1.0 HP / 10 / 1.25" / 6" / 75 m / 6000 LPH |
| V6-15 | 1.5 HP / 15 / 1.25" / 6" / 100 m / 6000 LPH |
| V6-20 | 2.0 HP / 20 / 1.25" / 6" / 135 m / 6000 LPH |
| V6-25 | 2.5 HP / 25 / 1.25" / 6" / 165 m / 6000 LPH |
| V6-30 | 3.0 HP / 30 / 1.25" / 6" / 200 m / 6000 LPH |
Specifications are subject to change without prior notice.
Available Sizes
V6-10 (1.0 HP)V6-15 (1.5 HP)V6-20 (2.0 HP)V6-25 (2.5 HP)V6-30 (3.0 HP)
Advantages
- Water filled motor for better cooling
- High grade stainless steel body
- High performance & high head
- Low maintenance & long life
- Tested for safety & performance

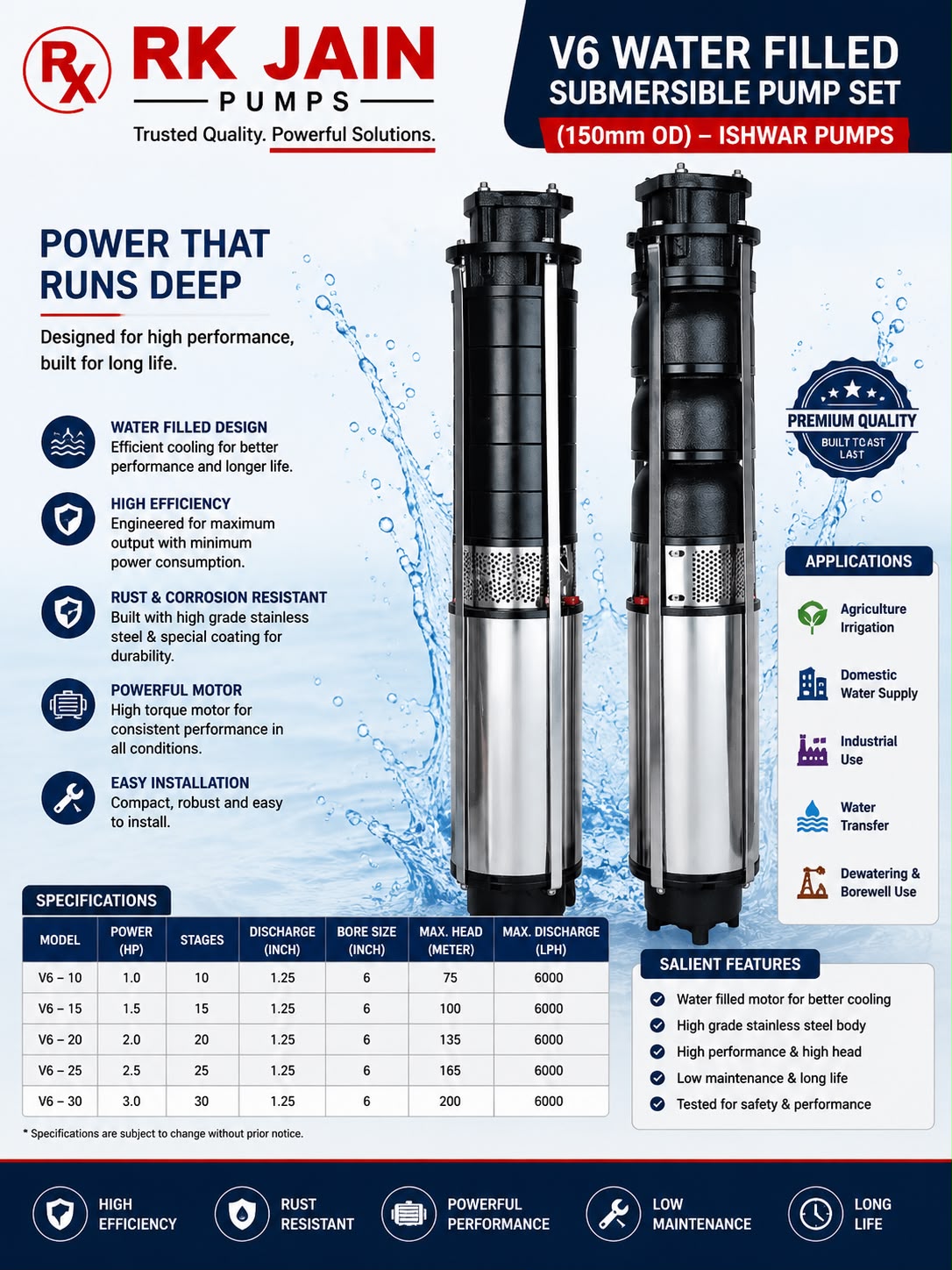

Product Brochure
Product Brochure
The full original product brochure with all specifications and variants.
